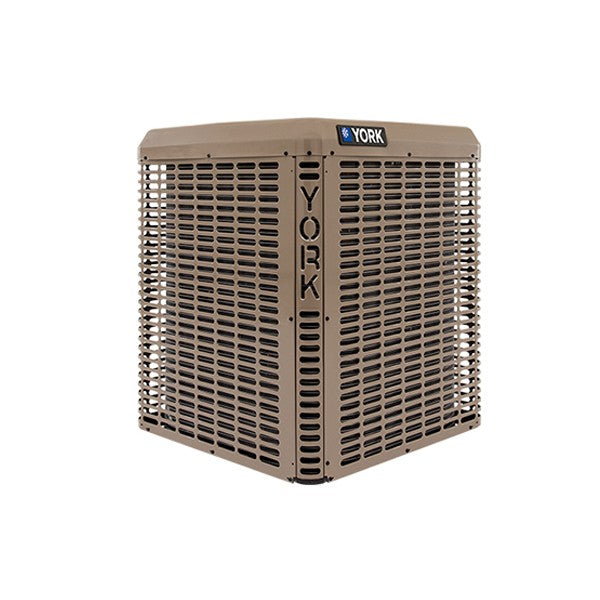

The York YH5 Heat Pump is part of our successful split system heat pump lineup. These outdoor units are optimized for 15.2 SEER2/7.8 HSPF2 Minimum Efficiency in all US Regions, and are specifically designed to be matched with our residential indoor coils, furnaces, and air handlers to provide a complete system solution.

Standard Features:

• Easier installation - Independent panels provide quick access for unit setup. Installation time is reduced by easy power and control wiring access. Select indoor matches with factory-mounted TXVs are available for quicker system installation. The filter-drier is shipped loose for installation in the field. The unit is factory-charged for 15 ft refrigeration piping. The small base dimension and reduced unit clearances make for easier retrofits.
• Accessible information - QR code on unit provides quick access to technical documents and warranty information.
• Durable finish - The coated steel wire fan guard, coated external fasteners, and pre-treated G90-equivalent galvanized steel chassis components resist corrosion and rust creep. Modern Mist colored powdercoat paint further protects external panels.
• Quality coils - The high efficiency microchannel aluminum coil is manufactured using an improved material system, providing reliable performance and small unit size.
• Rugged coil protection - Coils are protected from mechanical damage by a proven stamped steel coil guard design.
• Protected compressor - Compressors are protected internally by a high-pressure relief valve and a temperature sensor, and externally by the system high-pressure switch.
• Reliable operation - Ball bearing fan motors provide superior performance in extreme temperatures.
• Environmentally friendly - CFC-free R-454B refrigerant delivers environmentally friendly performance with zero ozone depletion.
• Top discharge - Warm air is blown up, away from the structure and any landscaping, allowing compact location on multi-unit applications.
• Low operating sound levels - Developed using CFD and FEA tools, the sturdy cabinet and top design provides sound performance of 77 dBA or lower. Compatible accessories for further sound reduction are also available.
• Better service access - Diagonal base valves with open access for low-loss fittings, single panel access to the electrical controls, swing out control box for full corner access, and removable fan guard allow easy access for unit maintenance.
• Agency listed - Safety certified by CSA to UL 60335-2-40/CSA C22.2. Performance certified to ANSI/AHRI Standard 210/240 in accordance with the Unitary Small Equipment certification program.
