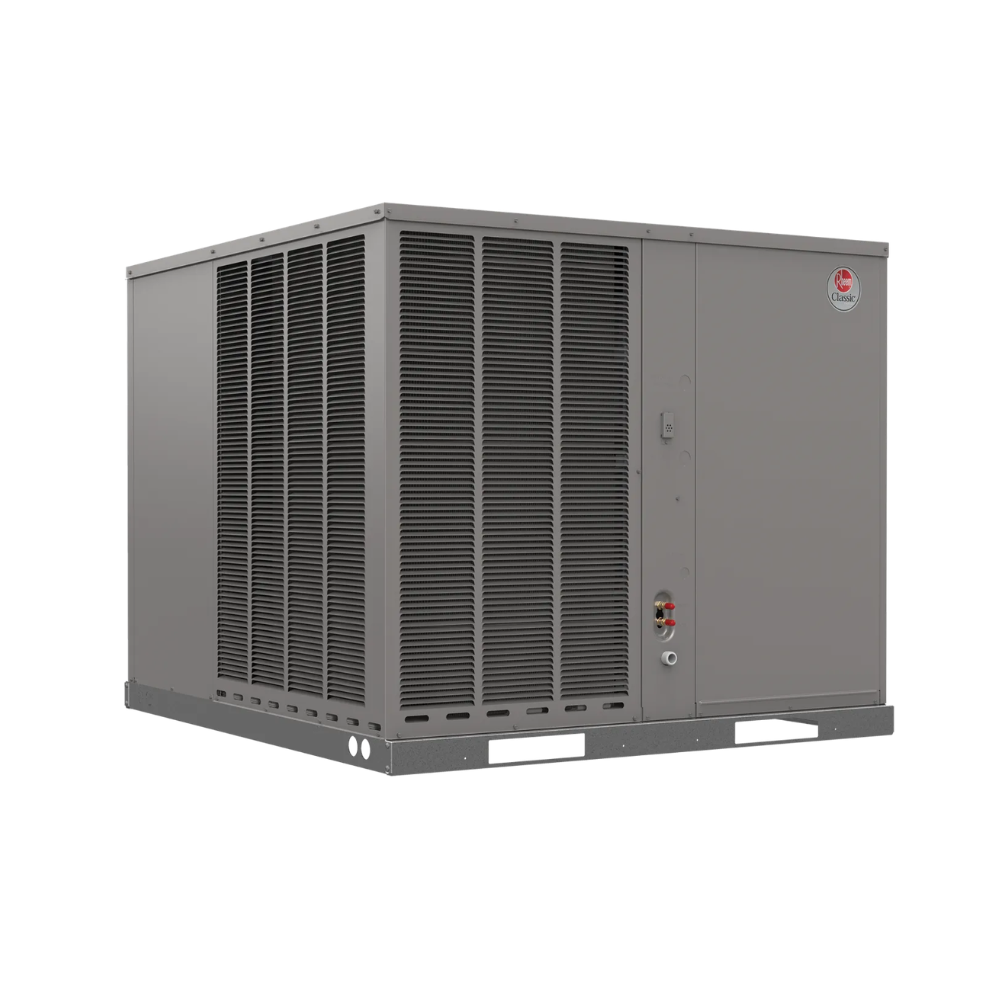

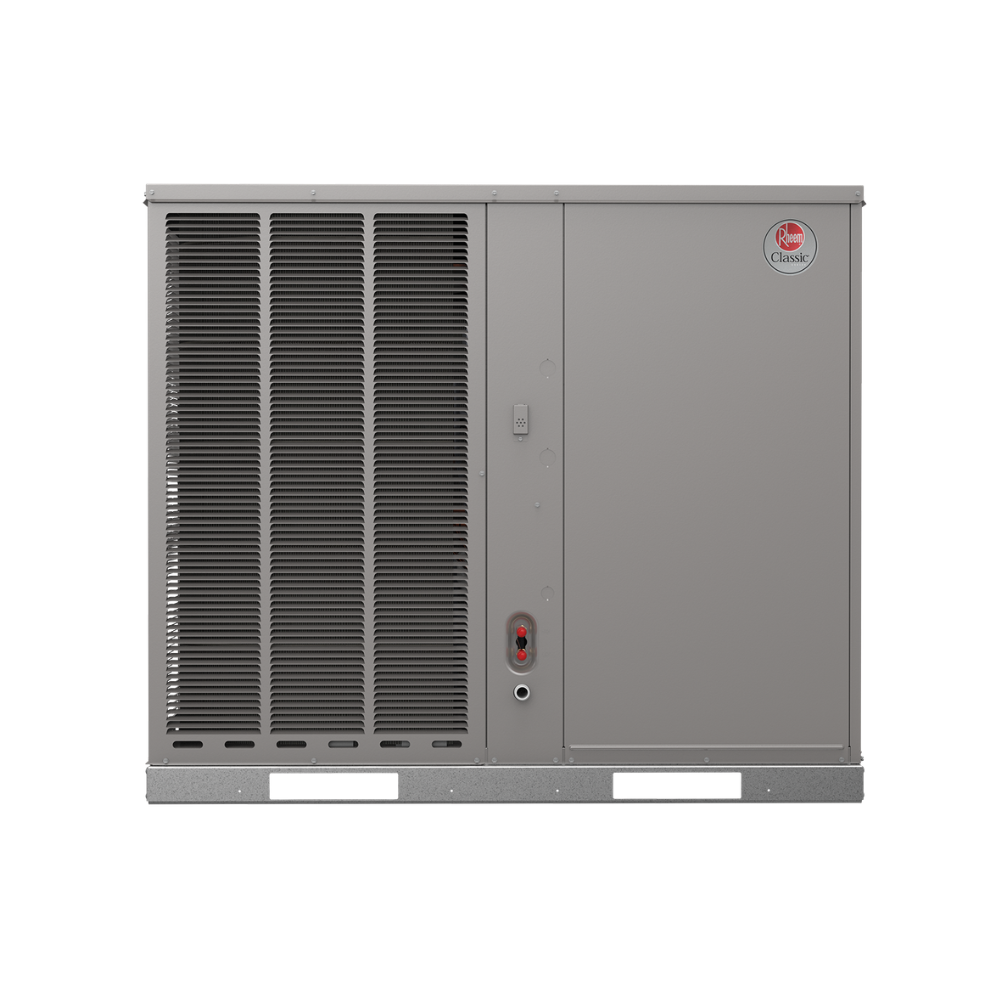

Rheem Endeavor 3 Ton 13.4 SEER2 R-454B Multiposition Commercial Package Heat Pump
Rheem Endeavor 3 Ton 13.4 SEER2 R-454B Multiposition Commercial Package Heat Pump
Model: RHPXYB036AJT000NA
Couldn't load pickup availability
The Rheem RHPXY Series Package Heat Pump provides energy-efficient, reliable year-round indoor comfort. Delivering a robust 13.4 SEER2 cooling efficiency, this 3-ton self-contained unit offers both high-performance heating and cooling in one rugged, streamlined cabinet. Designed to slowly ramp up your comfort while minimizing energy usage, this heat pump features a dependable scroll compressor and an optimized blower system. The Rheem Endeavor series ensures consistent temperature control, quiet operation, and outstanding durability for your home or business.
Standard Features:
- Energy-efficient 13.4 SEER2 cooling and responsive heat pump performance
- High-efficiency scroll compressor provides smooth, quiet, and long-lasting operation
- MicroChannel evaporator and condenser coils for superior heat transfer and system reliability
- Factory equipped with no supplemental electric heat (0 kW)
- Direct drive, multi-speed ECM indoor blower motor for efficient and quiet airflow delivery
- Easily accessible control box, compressor, and blower compartment for simplified maintenance and service
- Demand defrost control panel prevents frost buildup, ensuring maximum heating efficiency during winter months
- Factory charged with eco-friendly R-410A refrigerant
Cabinet Features:
- Heavy-gauge galvanized steel cabinet with a weather-resistant powder-paint finish
- Louvered condenser compartment provides superior physical protection for the coil against yard hazards and weather
- Versatile design allows for standard horizontal airflow or downflow applications
- One-piece top with a deep flange to help keep water out of the unit
- Drawn, painted base pan elevates the unit off the pad and features a built-in drain to prevent water accumulation
- Fully insulated indoor cabinet sections to ensure quiet operation and reduce thermal loss
| Model Number (s) | RHPXYB036AJT000NA |
| Brand | Rheem / Ruud |
| Type | Heat Pump |
| Ton | 3.0 Ton |
| SEER | 13.4 |
| Cooling Btu | 36000 |
| Cooling Stage(s) | 1 |
| Compressor Stage | Single |
| Electrical Phase(s) | 1-Phase |
| Decibel Level (dB) | 78 |
| Refrigerant Type | R-454B |
| Parts Warranty (Years) | 10 (If Registered with Manufacturer) |
| Compressor Warranty (Years) | 10 (If Registered with Manufacturer) |
| AHRI Certificate # | 215876673 |
| UPC # | 633190305138 |
| Heating Btu | 34000 |
| Amp(s) | 35 |
| Voltage | 208/230V |
| Maximum CFM | 1200 |
| Heating Stage(s) | 1 |
| Total Shipping Weight (lbs.) | 449 |
| Height (Inches) | 41 |
| Width (Inches) | 47.5 |
| Depth (Inches) | 50.6875 |
| Category | Heat Pumps |
| HSPF | 6.7 |
