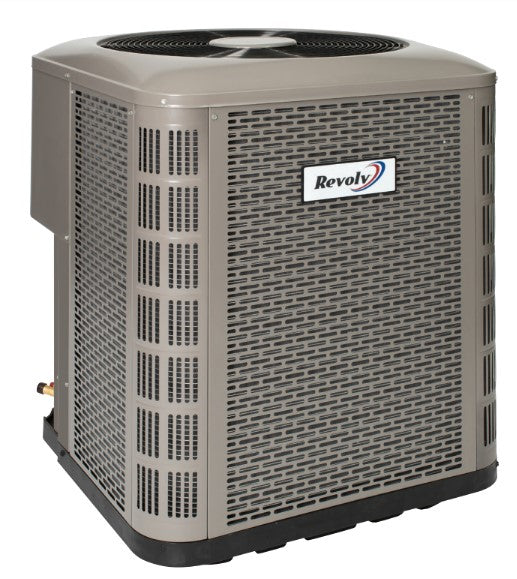

The Revolve HSA4ME Series Mobile Home Air Conditioner offers exceptional performance. The unit, when combined with our engineered coils or air handlers, offers a full line of quality, split system cooling equipment.

Standard Features:

• Designed for Manufactured Housing: Charged with refrigerant for 20 feet of lineset.
• Full Service Valves: These brass valves are easily accessible and simplify servicing of the refrigeration system.
• DesignedUsingGalvanizedSteel:Apowder coated paint that eliminates sharp edges and reduces corrosion, fading, chipping and scratching. It passes 950 hours of salt spray per ASTM Std. B117.
• Composite Base Pan: Absorbs sound and is corrosion resistant. Composite is also stronger and lighter than steel.
• QualityCompressor State-of-the-artScroll compressor is standard equipment, offering superior comfort and efficiency.
• Powder Coated Full Metal Jacket: Will never rust and protects the coil from being damaged by balls, lawnmowers, hail, etc.
• Permanently Lubricated Motor: A heavy duty PSC motor for long lasting reliability and quiet operation. Requires no maintenance and is completely protected from rain and snow.
• Removable Top Grille Assembly: Allows ease of service from the top without disconnecting fan motor leads.
• High Pressure Switch: Protects against abnormally high system pressures. Auto-reset feature prevents nuisance service visits.
• Liquid Line Filter Drier: Included with unit, factory installed on QE and field installed on ME models.
• One Piece Top/Orifice: Designed for maximum airflow and quiet operation.
• Easy Compressor and Control Access: Designed to make servicing easier for the contractor, access panels are provided to all controls and the compressor from the side of the unit.
• All-Aluminum coils: Aluminum coils in all models which provides high corrosion resistance.
• Servicer-Friendly Jacket: Side panels can be easily removed and replaced without removing the top grill.

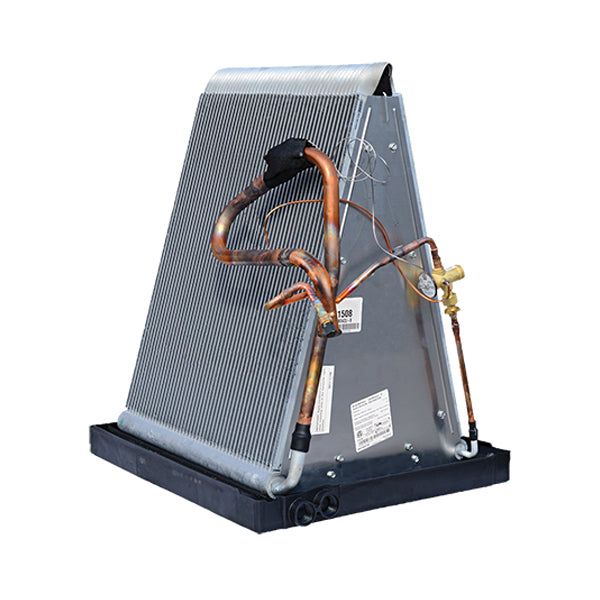

The Revolv C85 Series Mobile Home Evaporator Coils are designed for upflow or downflow applications and are equipped with down turned refrigerant connections and are ready for brazing. This unit uses refrigerant R-454B. DO NOT use any other refrigerant in this unit. Ensure that any outdoor section is suitable for use with R-454B. DO NOT mix refrigerants.

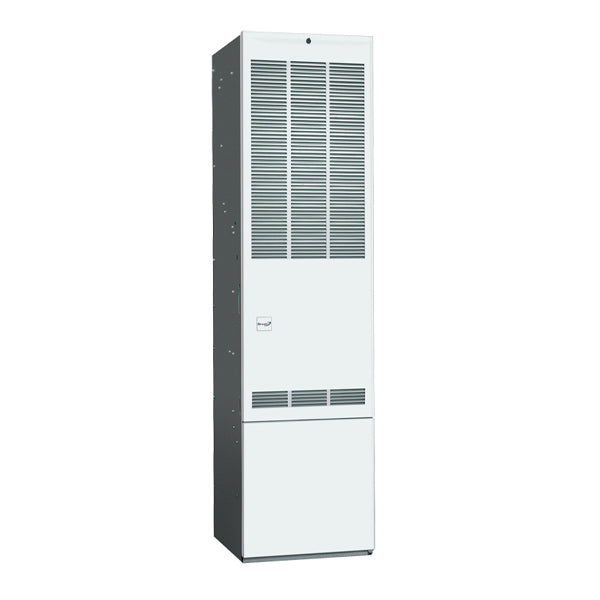

The Revolve MG1 Series Mobile Home Gas Furnace is designed for all sizes of manufactured and modular homes. These units incorporate high efficiency, reliability, and low maintenance. Units may be installed free standing in a utility room or enclosed in an alcove or closet. MG1 Series furnaces are available in A/C adaptable or A/C ready, with or without coil cavity box and many burner options.

Standard Features:

• Sealed Combustion System: Vents exhaust gas directly outdoors and draws in 100% outside air for the burner.
• Choice of Air Conditioning Options: From 2 to 4 tons A/C ready.
• Large, Effective Air Filter: Room air is cleaner with this permanent washable filter.
• High Efficiency Drum Heat Exchanger: Delivers optimum heat transfer with low air resistance.
• Appliance Quality Door: Protects against rust and other corrosion. Baked enamel finish allows for easy cleaning.
• Fully Insulated Cabinet: Insures minimized heat loss and quiet operation.
• Reliable Burner: With uniform flame pattern extends life of heat exchanger.
