IMPORTANT NOTE:  When purchasing COOLING ONLY HVAC EQUIPMENT, Florida residents must refer to the new Florida Building Code, 8th Edition Section R501.7.2 which became effective on December 31st, 2023.  This section can be viewed online here or you may review the letter provided by the Technical Director of the DBPR Florida Building Codes and Standards in the documents section below.

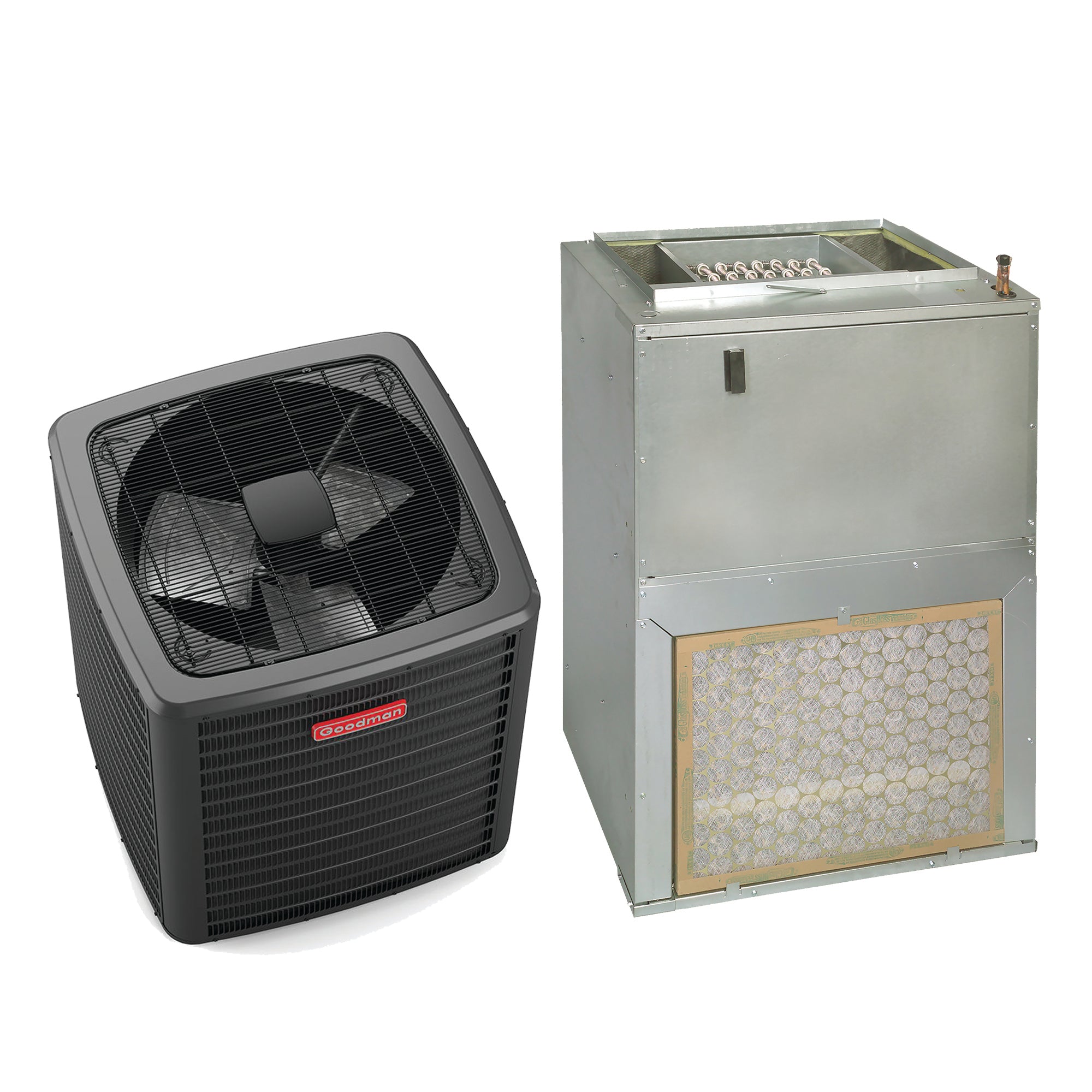

The Goodman GSXN4 Air Conditioner Condenser is available now in very limited quantities! This unit will only match with Goodman AMST, AWST and AVPTC air handlers or CAPFA series coils. This unit will not work with ARUF or ASPT air handlers.

Standard Features:

• Energy-Efficient Compressor
• Factory-installed filter drier
• Fully charged for 15’ of tubing length
• Copper tube/ enhanced aluminum fin coil-5mm diameter on 1.5-4.0T
• Service valves with sweat connections and easy-to-access gauge ports
• Contactor with lug connection
• Ground lug connection
• AHRI Certified
• ETL Listed

Cabinet Features:

• Removable grille-style top design compliant with UL 60335-2-40
• Heavy-gauge galvanized-steel cabinet
• Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
• Steel louver coil guard
• Single-panel access to controls with space provided for field-installed accessories
• When properly anchored, meets the 2020 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

The Goodman AWUF Air Handler (front-return) is designed to be vertically wall or stud mounted. This unit features a check flowrater and direct drive, multi-speed motor. The AWUF is housed in a fully insulated, galvanized-steel cabinet.

Standard Features:

• Suitable for use with refrigerants R-410A (16 models only) and R-22 (16 & 1 models)
• Check flowrater for cooling and heat pump applications
• Direct-drive, multi-speed motor
• Sequence-controlled, rust-resistant nickel chromium heating elements of 5, 8 and 10 kW
• ARI Certified; ETL Listed
• Thermoplastic drain pan with bottom primary/secondary drain connection
• Built-in filter rack (filter included)
• Factory-installed pull-type disconnect
• Large Chassis (2 and 3 Ton Units); Front Return Only
• Small Chassis (1 and 2 Ton Units); Front or Bottom Return
• Wall-hanging bracket provided
