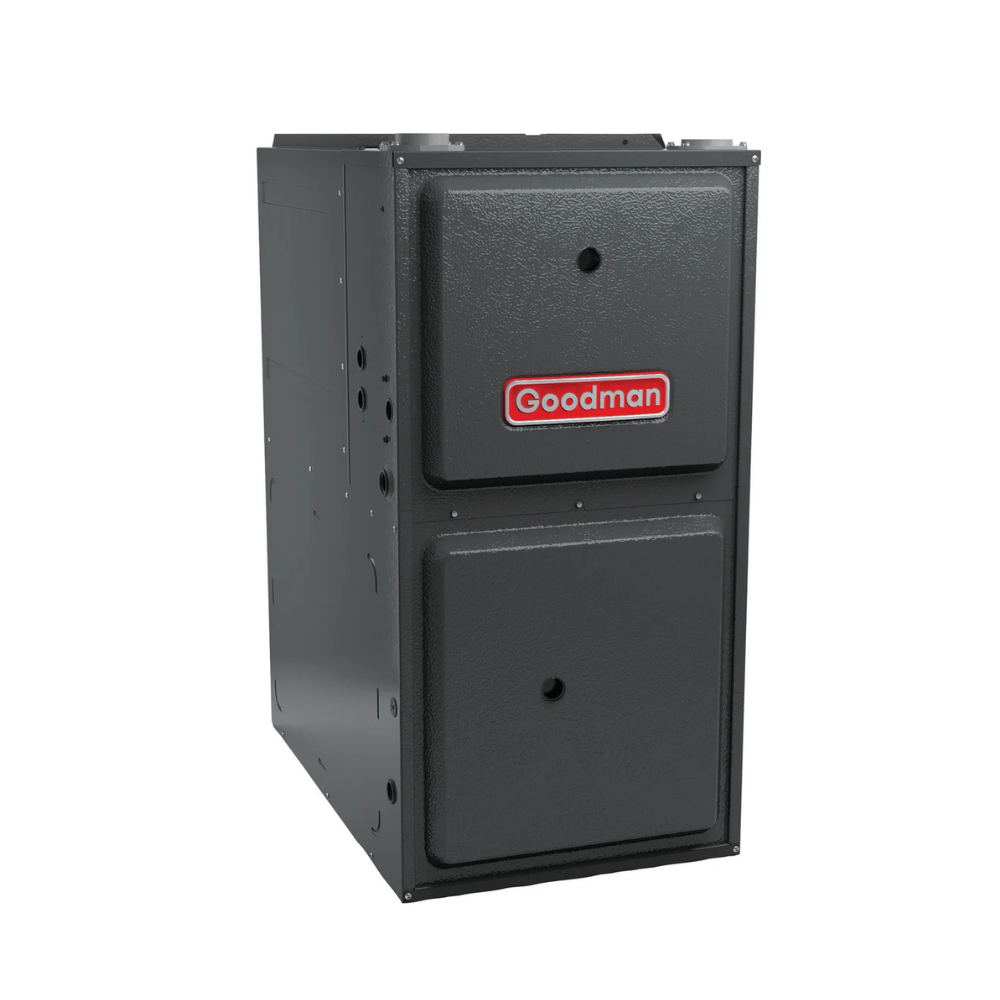

Goodman 60,000 Btu 96% Afue Variable Speed Ultra Low-NOx Upflow Gas Furnace (AQMD's Only)
Goodman 60,000 Btu 96% Afue Variable Speed Ultra Low-NOx Upflow Gas Furnace (AQMD's Only)
Model: GMVS960603BU
Regular price
$2,977.00
Sale price
$2,977.00
Regular price
$4,253.00
In Stock
Couldn't load pickup availability
110% Price Match Guarantee
Share:
The Goodman GMVS96 Ultra Low-NOx Single Stage Gas Furnace is the kind you don’t have to think or worry about. It comes on the moment you need it and then runs quietly and efficiently all winter long as needed. The Goodman® GMVS96-U is loaded with features designed to provide outstanding performance for years to come. We use advanced techniques and materials so you know the cozy, even heat you feel in every corner of your home is an energy-efficient warming trend that’s designed to stay for many years.
Standard Features:
- Integrated communicating ComfortBridge™ Technology
- Commissioning and diagnostics via indoor board Bluetooth with the CoolCloud™ phone and tablet application
- Heavy-duty stainless-steel dual-diameter tubular heat exchanger
- Super-ferritic Stainless-steel secondary heat exchanger
- Single-stage gas valve
- Durable Silicon Nitride igniter
- Quiet, modulating draft inducer
- Self-diagnostic control board with constant memory fault code history output to 3 x 7 segment display
- Variable-speed ECM blower motor
- Eligible for installation in California’s South Coast Air Quality Management District (SCAQMD) and San Joaquin Valley Air Pollution Control District (SJVUAPCD). This furnace complies with the 14 ng/J NOx emission limit in SCAQMD Rule 1111 and SJVUAPCD Rule 4905.
- EMI line filter kit must be installed. (It is intended for field installation only on “VS” model, Bluetooth® capable Ultra Low NOx Gas Furnaces. The purpose of the EMI Filter is to reduce electromagnetic interference between the furnace and other electrical devices) • AHRI Certified; ETL Listed
Cabinet Features:
- Designed for multi-position installation — upflow, horizontal left or right
- Certified for direct vent (2-pipe) or non-direct vent (1-pipe)
- Easy-to-install top venting with optional side venting
- Convenient left or right connection for gas and electrical service
- Cabinet air leakage (QLeak) ≤ 1.4%
- Heavy-gauge steel cabinet with durable finish
- Fully insulated heat exchanger and blower section
- Airtight solid bottom or side return with easy-cut tabs for effortless removal in bottom air-inlet applications
| Model Number (s) | GMVS960603BU |
| Brand | Goodman |
| Type | Gas Heat |
| Electrical Phase(s) | 1-Phase |
| Refrigerant Type | R-410A |
| Parts Warranty (Years) | 10 |
| UPC # | 663051599802 |
| Furnace Configuration | Up-Flow |
| Afue | 96% |
| Amp(s) | 15 |
| Voltage | 115V |
| Heat Exchanger Warranty (Years) | Lifetime |
| Blower | Variable Speed |
| Maximum CFM | 1,400 |
| Heating Stage(s) | 1 |
| Total Shipping Weight (lbs.) | 122 |
| Height (Inches) | 34 1/2 |
| Width (Inches) | 17 1/2 |
| Depth (Inches) | 28 3/4 |
| Category | Gas Furnaces |
| Input Btu (Furnaces/Package) | 60,000 |
| Output Btu (Furnaces/Package) | 57,600 |
| Heat Exchanger Warranty (Years) | Lifetime |
| Blower | Variable Speed |
| Maximum CFM | 1,400 |
| Heating Stage(s) | 1 |
| Total Shipping Weight (lbs.) | 122 |
| Height (Inches) | 34 1/2 |
| Width (Inches) | 17 1/2 |
| Depth (Inches) | 28 3/4 |
| Category | Gas Furnaces |
| Input Btu (Furnaces/Package) | 60,000 |
| Output Btu (Furnaces/Package) | 57,600 |
